Oil-Immersed Power Transformer: The Backbone of Cold-Climate Power Grids

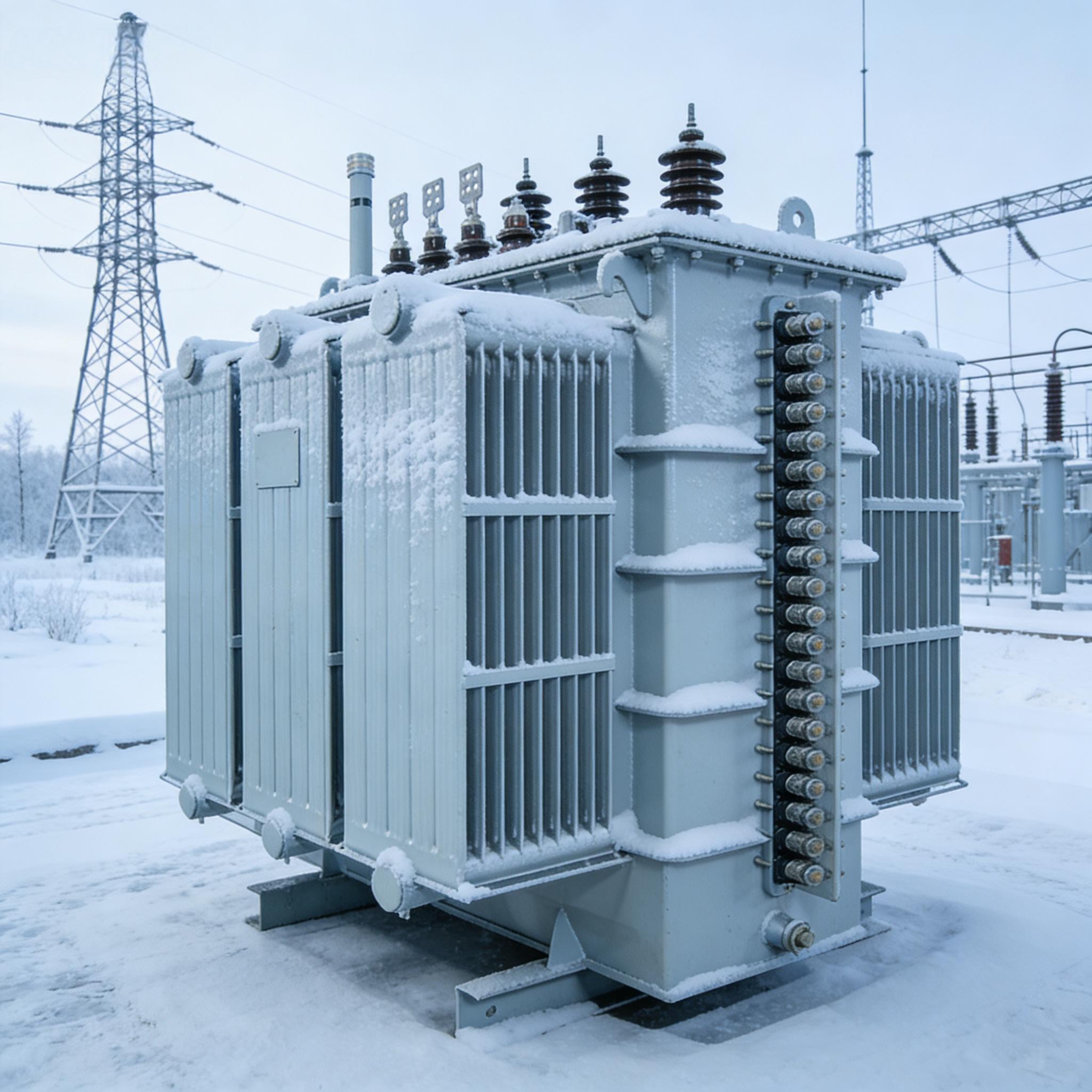

At the heart of every resilient power infrastructure lies a workhorse engineered to withstand the harshest environmental extremes: the oil-immersed power transformer. This image captures a robust, high-voltage oil-immersed transformer standing sentinel in a snow-covered substation, a testament to its unrivaled reliability in frigid, sub-zero conditions. For regions with long, harsh winters—from Northern Europe to North America’s upper Midwest and China’s Northeast—this transformer is not just a component, but the lifeline that keeps power flowing to homes, hospitals, and industrial facilities when temperatures plummet well below freezing.
Oil-immersed transformers are the gold standard for high-voltage, high-capacity power transmission and distribution, and for good reason. The mineral oil that fills the transformer’s tank serves two critical, life-sustaining functions: it acts as a highly effective electrical insulator, preventing arcing and short circuits between the high-voltage windings, and it functions as a superior heat transfer medium, dissipating the massive amounts of heat generated during operation. In cold climates, this oil is specially formulated with low pour-point properties, ensuring it remains fluid and effective even at -40°C or lower, preventing the catastrophic failure that would occur if the oil solidified. The transformer’s rugged, all-steel construction, with its corrugated cooling fins (radiators) designed to maximize surface area for heat exchange, further enhances its ability to regulate temperature, whether in the depths of winter or the peak of summer.
The components visible in this image tell a story of engineering precision. The porcelain bushings atop the tank, coated in a light dusting of snow, are the critical interface between the transformer’s internal windings and the external high-voltage power lines. These bushings are engineered to provide exceptional insulation, even in icy, wet conditions, preventing flashovers that could disrupt the entire grid. The array of tap changers on the side of the tank is another vital feature: these devices allow operators to adjust the transformer’s voltage ratio in real time, compensating for voltage drops caused by extreme cold, heavy load demand, or line losses, ensuring a stable, consistent power supply to end-users. The transformer’s base, mounted on a reinforced steel foundation, is designed to withstand heavy snow loads, wind, and seismic activity, ensuring long-term structural integrity.
For utility companies and grid operators, oil-immersed transformers like this are the foundation of a reliable power grid. They are deployed in transmission substations, where they step down high-voltage electricity (from 110kV, 220kV, or even 500kV) to lower voltages suitable for distribution to local communities. In cold climates, their reliability is non-negotiable: a single transformer failure can leave thousands without heat and power in life-threatening conditions. This is why these transformers are built to last, with a design lifespan of 30 years or more, and undergo rigorous testing—including cold-start tests, insulation resistance tests, and load-loss tests—before they are ever deployed in the field.
Beyond their technical performance, these transformers represent a critical investment in energy security and sustainability. As the world transitions to renewable energy, oil-immersed transformers are essential for integrating wind and solar power into the grid, stepping up the voltage from renewable generation sites for long-distance transmission, and stepping it down for end-use. In cold climates, where wind power is a abundant but variable energy source, these transformers play a key role in stabilizing the grid, ensuring that clean energy reaches consumers reliably, even in the harshest weather.
This image is more than just a picture of a piece of equipment; it is a symbol of human ingenuity and resilience. It represents the engineering that allows modern civilization to thrive in some of the coldest places on Earth, powering everything from remote rural communities to major industrial centers. For our company, these transformers are the cornerstone of our product line, engineered to the highest international standards (IEC 60076, ANSI C57, GB/T 1094) to deliver unmatched reliability, efficiency, and durability. Every transformer we manufacture is a promise: to keep the power on, no matter how cold it gets.
